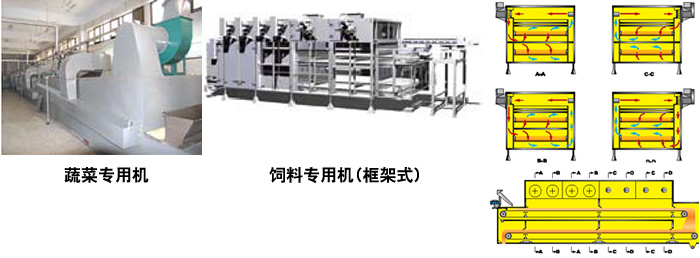

 DW Series Mesh-Belt Dryer
>> Specialized machine for vegetable
Equipment name |
Unit |
Three units in series specialized machine for vegetable |
Five layers specialized machine for vegetable (Frame type) |
| Spec |
|
DW-3-2-1 |
DW-3-2-10 |
DW-5-3-12 |
| Effective belt width |
m |
2 |
2 |
3 |
| Effective belt length |
m/Unit |
10 |
10 |
12 |
| Tandemquantity |
|
3 |
3 |
|
| Layers |
|
|
|
5 |
| Vegetable capacity |
kg/h |
600 |
720 |
2000 |
| Evaporate strength |
kg/h |
400-510 |
480-640 |
1440-1800 |
| Consumption of steam |
kg steam/kgH2O |
2.2-2.5 |
2.2-2.5 |
2.2-2.4 |
| Heat radiation area |
m2 |
900 |
1440 |
2600 |
| Total power of the machine |
kw |
70 |
52 |
150 |
| Overall size |
m |
33.2×2.58×2.8 |
33.2×2.27×2.85 |
15.3×4.3×8.5 |
| Heat sourcetype |
Steam,theermal conductivity oil,hot air furnace,electric |
>> Specialized machine for feed (frame type)
| Spec |
Unit |
DW-3×12 |
| Effectivebelt width |
m |
3 |
| Effective belt length |
m |
12 |
| Using temperature |
℃ |
80-130 |
| Pressure of steam |
Mpa |
0.4-0.8 |
| Drying time |
min |
35-50 |
| Thickness of material |
cm |
5-8 |
| Drying strength |
kg/h |
6-20 |
| Consumption of steam |
kgsteam/kgH2O |
2-2.4 |
| Total power of the machine |
kw |
76 |
| Overall size |
m |
15.1×4.3×3.4 |
 |
|
|
